Buffalo Tubeaxial Fan (industrial tubeaxial blower fan)

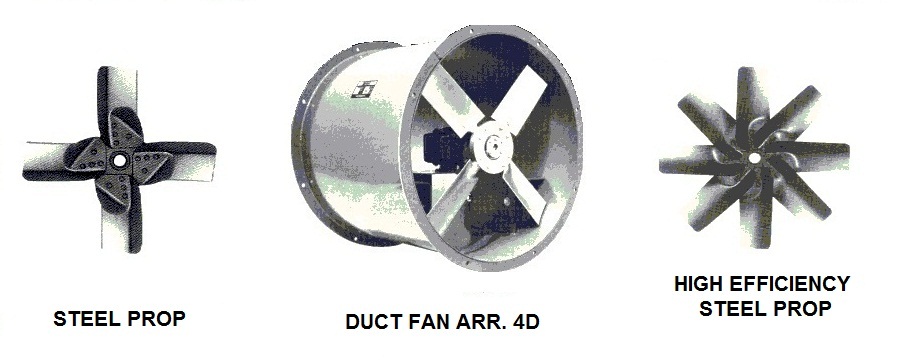

Tubeaxial fan: axial flow fan designed for low pressure building ventilation and industrial process application. Uses include heat, smoke, and fume removal; process ventilation and process air handling; proces drying with ambient or preheated up to 650 F air; comfort process cooling and general ventilation of buildngs. Available in direct drive arrangements 4/4M/4V/4D/4R and corresponding belt drive arrangements 9/9M/9V/9D/9R. Capacities: to 350,000 CFM. Static pressure to 4 inches water gauge.

Canada Blower offer a complete line of Axial Fans for industrial applications:

- Sizes 12" to 84" DIA for performances up to 100,000 CFM @ 3" WG static pressure;
- Aluminum efficient fan impeller;
- Direct drive for low maintenance;
- Heavy-gauge industrial steel fan housing;
- Choice of different mounting fan arrangements: duct, vertical suspended, roof mounted;
- Explosion proof and 2-speed models available;
- Different fan accessories: inlet bell with guard, silencers, dampers, mounting feet, protective coatings.

OTHER BLOWERS AND FANS CANADA BLOWER SUPPLY:

- Combustion air supply blowers;
- Oven circulation fans;
- Pneumatic conveying blowers;
- Dust collector fans;
- Super high pressure fans;
- Material handling blowers;
- Exhaust and supply process fans.

Aluminum wheel, Steel wheel, or Alloy wheel: tubeaxial fans for non-sparking x-proof applications is supplied in AMCA A, AMCA B, or AMCA C spark resistant fan construction in all aluminum welded construction, or in monel. For corrosive environment tubeaxial fan is supplied in 304 SS, 316 SS, or 316 L stainless steel construction. For chemical process applications tubeaxial fan is available in fiber reinforced plastic (FRP) construction, or in polypropylene construction, or in plastic. For high temperature applications up to 650 F tubeaxial fan is supplied typically in steel welded construction.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seals: tubeaxial fan shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Bearings are of pillow plock, or flaged bearings. Ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is used on high temperature applications.

Heat fan construction up to 850 F: includes high temperature paint, shaft cooler, shaft and bearing tunel cooling auxiliary blower (optional), insulated shaft and bearing tunel, steel, or alloy wheel.

Cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. Acoustic cloth jackets are available as inexpensive alternative. Inlet silencers/outlet silencers are supplied with matching flanges.

Inlet vane damper assembly: external inlet vane damper is provided for precise air volume control.

Standard accessories:flash / raised access door, inspection port, drain and plug, 3-way drain, mount feet, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, electrical actuators, pneumatic actuators.

Roof mount accessories: roof curb mount cap, roof curb, weather band, weather shroud with integral flap damper, butterfly damper assembly, magnetic latches.

Easy Access Construction: for wash-down duty applications: tube casing is of split open hinged construction and allows for direct access to the wheel-shaft-bearings and drive.


k



Canada Blower

http://www.industrialpressureblower.com/index.html
http://www.industrialpressureblower.com/ahu.html
http://www.industrialpressureblower.com/aircurtain.html
http://www.industrialpressureblower.com/airhandler.html
http://www.industrialpressureblower.com/blower.html
http://www.industrialpressureblower.com/contact.html
http://www.industrialpressureblower.com/fan.html
http://www.industrialpressureblower.com/heatexchanger.html
http://www.industrialpressureblower.com/heatingcoil.html
http://www.industrialpressureblower.com/humidifier.html
http://www.industrialpressureblower.com/humidifyer.html
http://www.industrialpressureblower.com/inquiry.html
http://www.industrialpressureblower.com/pressureblower.html

Quick supply of idustrial axial fans, air circulation ventilators, warehouse ventilators, high volume ventilation fans, hot air ventilation fans, industrial exhaust fans, portable industrial blowers, garage ventilators, PRV roof fans, explosion proof pressure blowers, wall ventilators, fan wheel blades, combustion pressure blowers, pvc ventilators, ID fans, FD fans, force draft ventilators, induse draft blowers, propylene & FRP PVC ventilators, spark-resistant blowers, sealed ventilators, dust collector ventilators & fans.
Sales of axial propeller fans; inline blowers; centrifugal fan ventilators; square in-line fans; FRP fan blowers; wall and roof exhauster fans. Scroll centrifugal and axial Buffalo Blower air handling fans and ventilators; belt and direct driven Buffalo fan ventilators; single-width and double-width blower fans; radial blowers; induce draft and force draft Buffalo Blower fans; high pressure and high temperature pressure blowers.
Process and OEM fans, explosion proof pressure blowers and fan blades, Buffalo, New York industrial high temperature blowers and Canadian Blower - Chicago Blower fans, high pressure blowers and high volume explosion-proof fans and ventilators.
Centrifugal fans: Industrial fans are fundamental components of plants for air pollution control. I
Canada Blower Company is the engineering sales representative for Industrial and OEM fan and blower manufacturer in North America. Canada Blower fans are well know for their highest manufacturing quality, reliability and industrial toughness for many years across the world.

Canada Blower is an engineering company for air moving equipment.  It developed a PT Power Tube Make-Up Air System - one of the most economical options for larger industrial plants ventilation air make up systems.

PT Air Make-Up fan system is a new ventilation concept. It utilizes some aerodynamic principles for supplying, tempering and distributing make-up air in a building in cold weather. It offers more efficiency, economy and comfort than most conventional make-up air units.

When exhaust fans are used to provide ventilation, both for industrial and process exhaust and personnel comfort, a negative air pressure is created within the building. This negative pressure causes several problems:

- Process exhaust systems are less efficient and may not work properly.
- Down flow can occur through gravity vents and result in the back venting of products of combustion from flues and stacks of heaters and process equipment.
- Drafts are created that are a dsicomfort to employees. Safe operating of outside doors may even be impaired.

Our Power Tube Fan Make-Up Air System solves all of these problems economically, even on the coldest winter day.

PT Fan System consists of a specially designed air supply fan, a wall housing and a motorized air inlet damper. A long polyethylene tubing is attached to the unit and extends horizontally inside building supported from  wire. It has precision holes punched on both sides at specific intervals along its length and has an opposed end closed off.

Each fan housing assembly is mounted in the outside wall opening or connected to a roof air supply fan.

In the winter, conventional make-up air systems have to heat the cold outside air prior to introduction into the building. This is an expensive process in both equipment and continuing energy cost. The Power Tube Fam Make-Up Air System is a simplier system that utilizes waste3d building heat and basic earodynamic principles for supplying, tempering and distributing make-up air. And that makes it less expensive than conventional make-up air systems to purchase, to install and to operate.

When make-up air is needed, the motorized inlet shutter opens, the supply fan turns on and supplied fresh outside air inflating the tube for its full length. The air discharges from the punched holes in the tube located overhead as small high velocity jets which create turbulent mixing with the warmer inside air. As a result the outside air is effectively tempered before it reaches the worker level, creating a uniform draft free make up air system.

Normally several PT Fan systems are required for a building, depending on the size of the building, volume of make-up air required, size of PT Fan models selected. Additional heating, if required, may be furnished from conventional type space unit heaters positioned near the distributing PT tubes.
